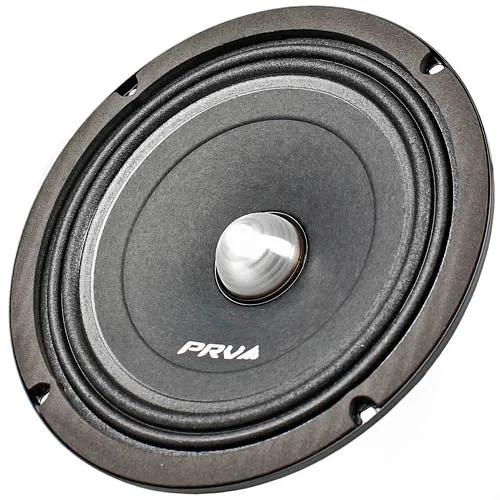

PRV Audio 8" Mid Range Loudspeaker 400 Watts 4 Ohm
The suspension design of this mid-range features the single layer spider – which connects to the coil former with premium stitched lead wires, all being driven by a copper-clad aluminum wire voice coil providing high efficiency and excellent power handling. Built for compact spaces and able to handle 400 watts of continuous power. Its slim design makes this the perfect car audio door speaker, allowing it to be utilized in endless ways.
Specifications:
• Nominal Diameter: 8″ (152 mm)
• Nominal impedance: 4 Ohms
• Rated AES Power Handling (RMS): 200 Watts
• Program Power: 400 Watts
• Sensitivity 2.83V at 1m: 93.5 dB
• Frequency Response at -10dB: 95 – 7,500 Hz
• Voice Coil Diameter: 1.5″ (38 mm)
• Voice Coil Wire: CCAW
• Voice Coil Winding Depth: 9.5 mm
• Former Material: Kapton
• Magnetic Gap Depth: 6.0 mm
• Frame Material: Stamped Steel
• Overall Diameter: 8.23″ (209 mm)
• Front Mount Baffle Cutout: 7.13″ (181 mm)
• Mounting Depth: 2.68″ (68 mm)
• Overall Depth: 2.95″ (75 mm)
