Name: JBL CONTROLCRV Loudspeaker with 70V/100V Transformer (Black) - 4"
SKU: 1091603

Product Details ＋

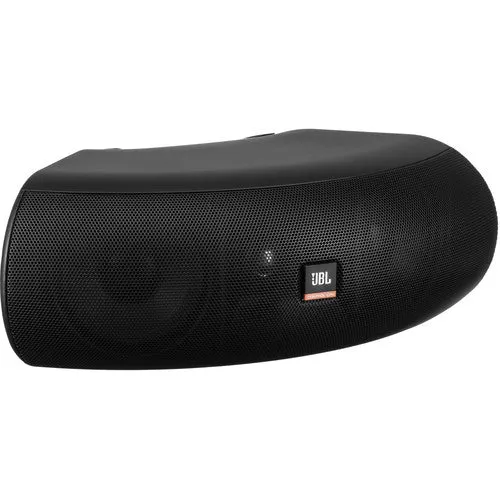

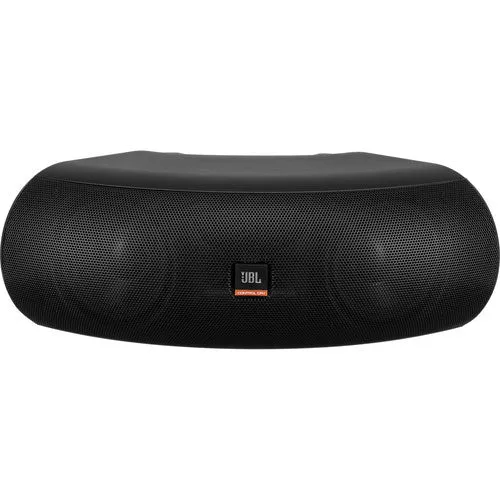

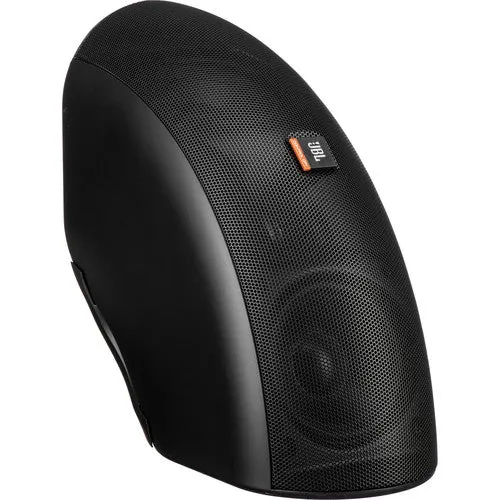

The Control CRV from JBL is a single compact loudspeaker ideal for indoor or outdoor installation. The sleek, weather-resistant housing contains dual 4" woofers to provide high-quality sound. The speaker has a 70/100V transformer and can also work with low impedance systems. The curved design allows you to combine speakers into half-round or full 360° arc clusters.

Features

Weather-Resistant Design
70/100V and Low Impedance Operation
Dual 4" Woofers

Specifications

Active/Passive	Passive
Number of Included Speakers	1
Speaker Configuration	2-Way
Power Handling	300 W Peak 150 W Program 75 W RMS
Constant Voltage / Transformer Taps	70 V: 30 / 15 / 7.5 / 3.8 W or 4 Ohms Bypass 100 V: 30 / 15 / 7.5 W or 4 Ohms Bypass
Impedance	4 Ohms (Thru Setting)
Transformer Wattage	30 W
Enclosure Type	Sealed
Shielded	No

Drivers

HF Driver	1x 0.75" / 1.91 cm Titanium Dome Tweeter
LF Driver	2x 4" / 10.2 cm Woofer
LF Voice Coil	1.25" / 3.17 cm
Magnet	LF: Neodymium HF: Neodymium

Performance

Frequency Range	80 Hz to 20 kHz -10 dB
Maximum SPL	108 dB (Continuous) 114 dB (Peak)
Sensitivity	89 dB (Half-Space)
Coverage Angle	105° H x 80° V
Directivity	8.6 dB (Directivity Index) 7.4 (Directivity/Q Factor)
Crossover	Low-Pass: 2 kHz, 18 dB/Octave High-Pass: 2 kHz, 36 dB/Octave

Connectivity

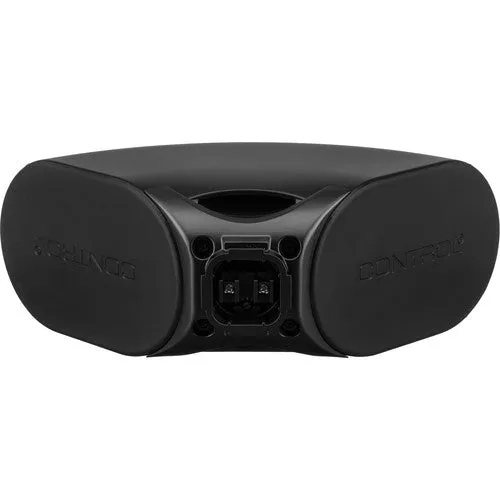

Inputs/Outputs	1x Screw Terminal 2-Pole Speaker Input
Maximum Wire Gauge	12 AWG / 2.5 mm

Environmental

Certifications	UL
Environmental Protection	Dust/Water-Resistant (IP34)

Physical

Color	Black
Mounting	1x Bracket Point (Rear)
Construction Material	ABS, Perforated Metal Grille
Dimensions	14.4 x 9.9 x 5" / 36.6 x 25.1 x 12.7 cm
Weight	7 lb / 3.2 kg

Packaging Info

Package Weight	9.155 lb
Box Dimensions (LxWxH)	13.75 x 13.7 x 7.4"

JBL CONTROLCRV Loudspeaker with 70V/100V Transformer (Black) - 4"
