Product Details
＋

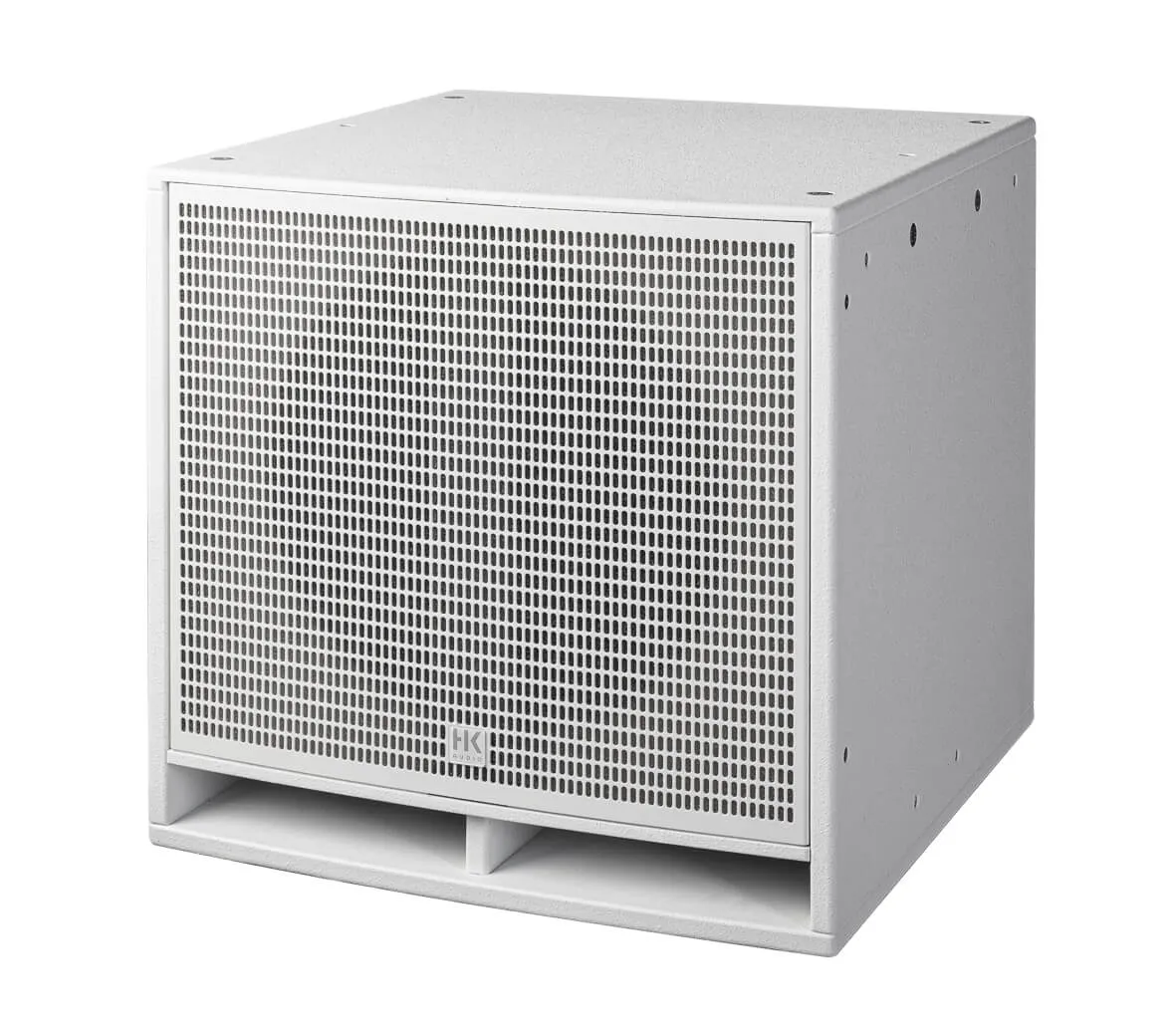

Very compact subwoofer with 12″ woofer, 2.5″ voice coil and 50 Hz tuning frequency. Ideal low-end support with powerful bass and high sound pressure as a system subwoofer or surround LFE for installations with compact speakers like the FO 5. Easy to integrate in environments with limited space. The cable feed-through on the rear, with cut-outs to the left, right or bottom, allows cables to be routed close to the wall, meaning the subwoofer can be placed against the wall without gaps. A secondary grille protects the bass reflex port from accidental or deliberate insertion of foreign objects. A ball-impact resistance certificate in line with DIN 18032-3 is provided for installations in sports facilities.
Specifications
| Characteristics | |
| Concept | Passive subwoofer |
| Cabinet principle | Bass reflex |
| Power handling RMS | 600 W |
| Power handling program | 1200 W |
| Power handling peak | 2400 W |
| Nominal impedance (According to EN 60268-5 (minimum value not less than 80% of nominal value)) | 8 ohms |
| Max. SPL average (1 m, 10 % THD @ 40 Hz - 100 Hz, (EN 60268-21), full space) | 116 dB |
| Max. SPL peak (1 m, 10 % THD @ 65 Hz, full space) | 120 dB |
| Sensitivity 1 W/1 m (40 Hz - 100 Hz, full space) | 91 dB |
| Frequency range -6 dB | 61 Hz - crossover frequency |
| Frequency range -10 dB | 42 Hz - crossover frequency |
| Dispersion angle -6 dB | omnidirectional |
| Certifications | |
| Ball impact resistance (DIN 18032-3) | certified (MPA University Stuttgart) |
| IP protection class (EN 60529) | not specified |
| Components | |
| Low frequency | 1x 12" Sica cone speaker with ferrite magnet and 2.5" voice coil |
| Crossover | no internal crossover |
| Connections | |
| Input | 1 x NL4 Speakon |
| Output/parallel output | 1 x NL4 Speakon |
| Pin assignment | 2 /- (input/parallel output), 1 /- (wired through) |
| Amping/DSP Presets | |
| Lab.Gruppen | IPX |
| LEA Professional | Sharkware |
| Amping/Filter Sheets | |
| Filter specifications in tabular form for frequency response equalization Without limiter specifications | Biamp Tesira BSS Lab.gruppen Lake Linea Research Marani Powersoft QSC Q-SYS Symetrix |
| Mechanical data | |
| Cabinet material | MDF |
| Cabinet surface | 1-component acrylic enamel |
| Color | Jet black (RAL 9005), signal white (RAL 9003) or special color according to catalog |

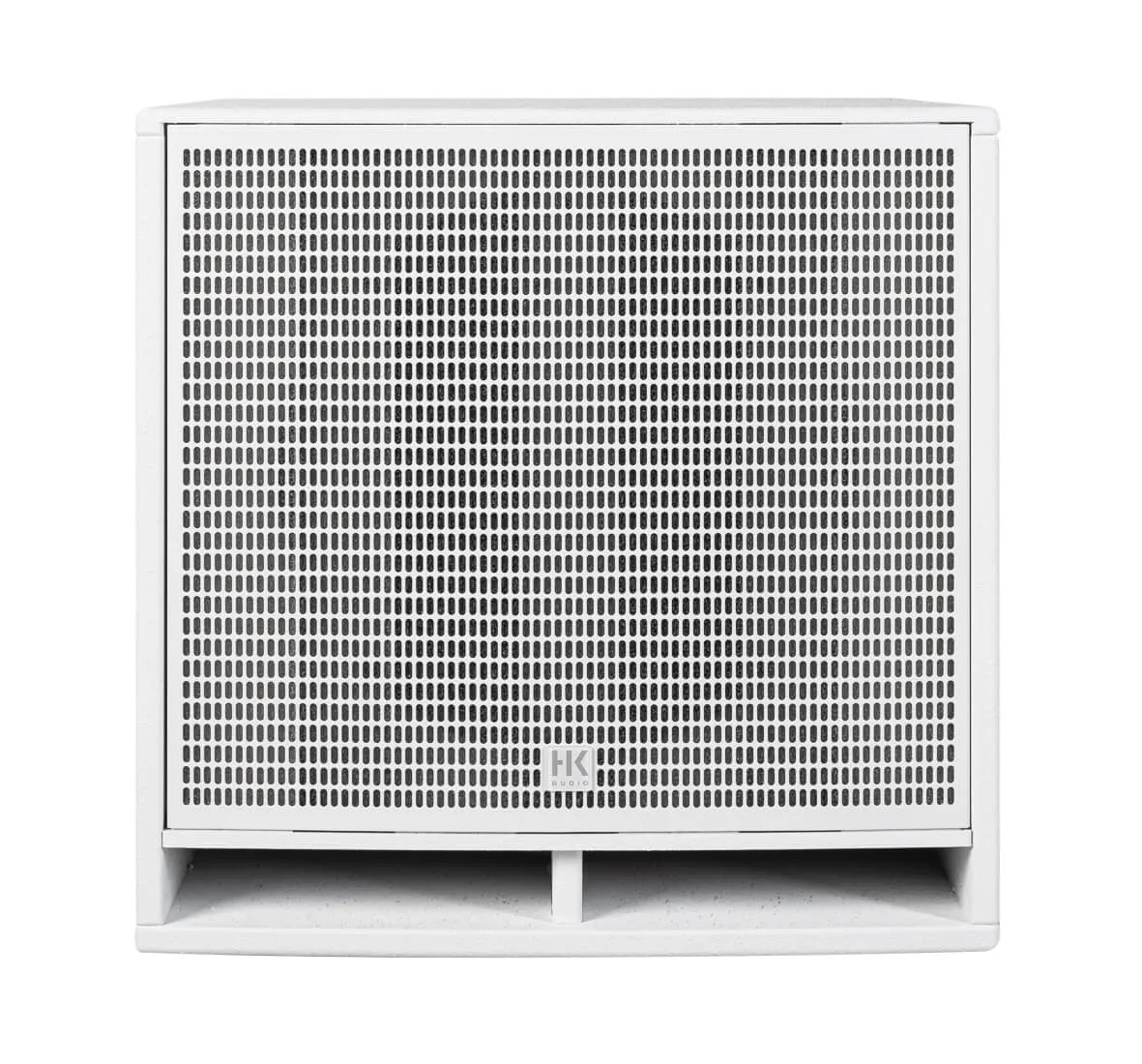

| Front grille | Steel front grille with anticorrosive coating, backed acoustic foam and additional steel reinforcements |
| Secondary grille | Insertion protection of the bass reflex port made of coated expanded metal |

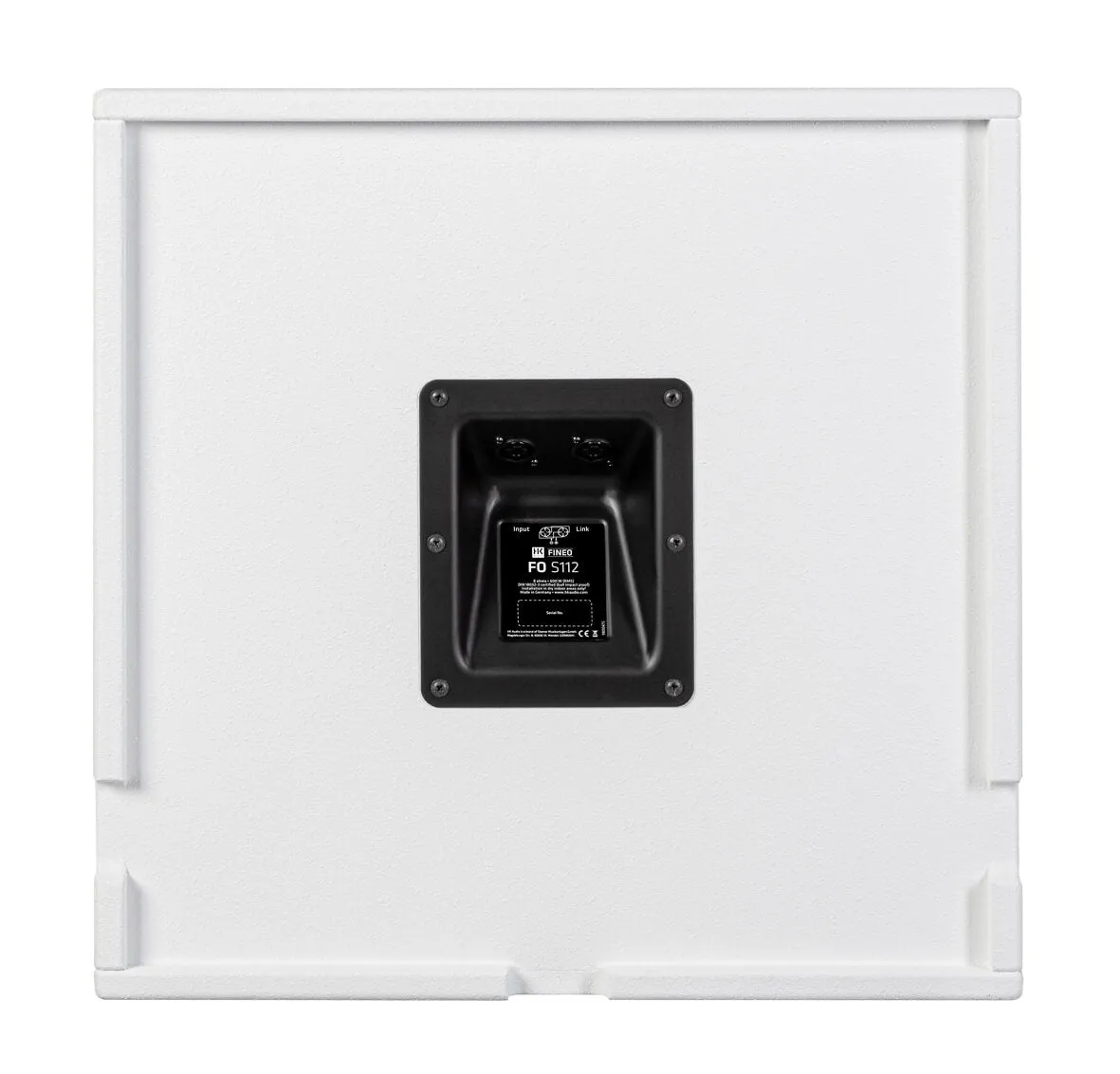

| Cable routing | Cutouts on the back for cable routing close to a wall to the left, right or below |

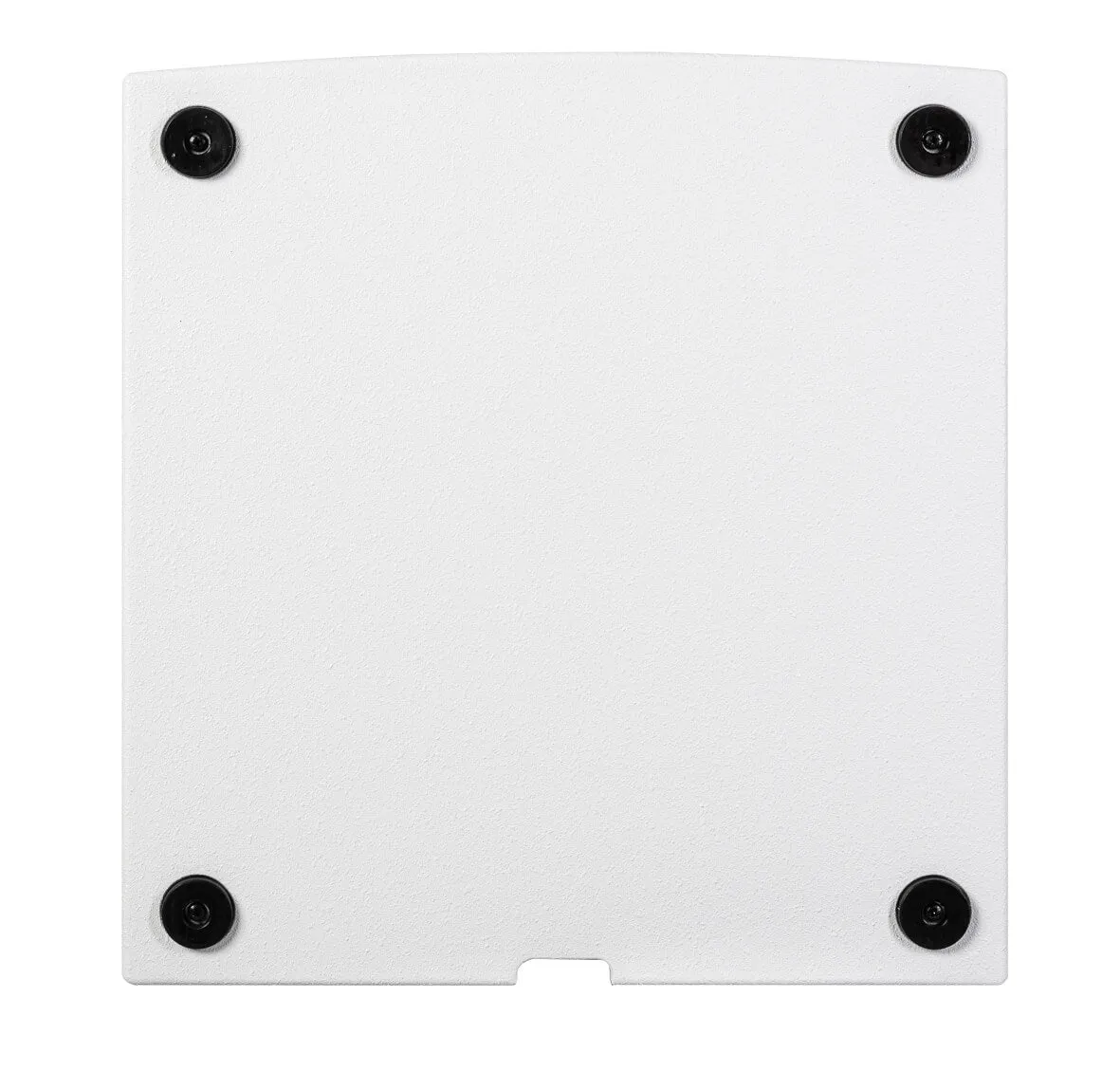

| Feet | 4 x rubber foot on bottom |
| Dimensions (WxHxD) | 474 x 478 x 506 mm 18.66 x 18.82 x 19.92 inch |
| Weight | 24.5 kg 54.01 Ibs |
