Product Details
＋
DESCRIPTION

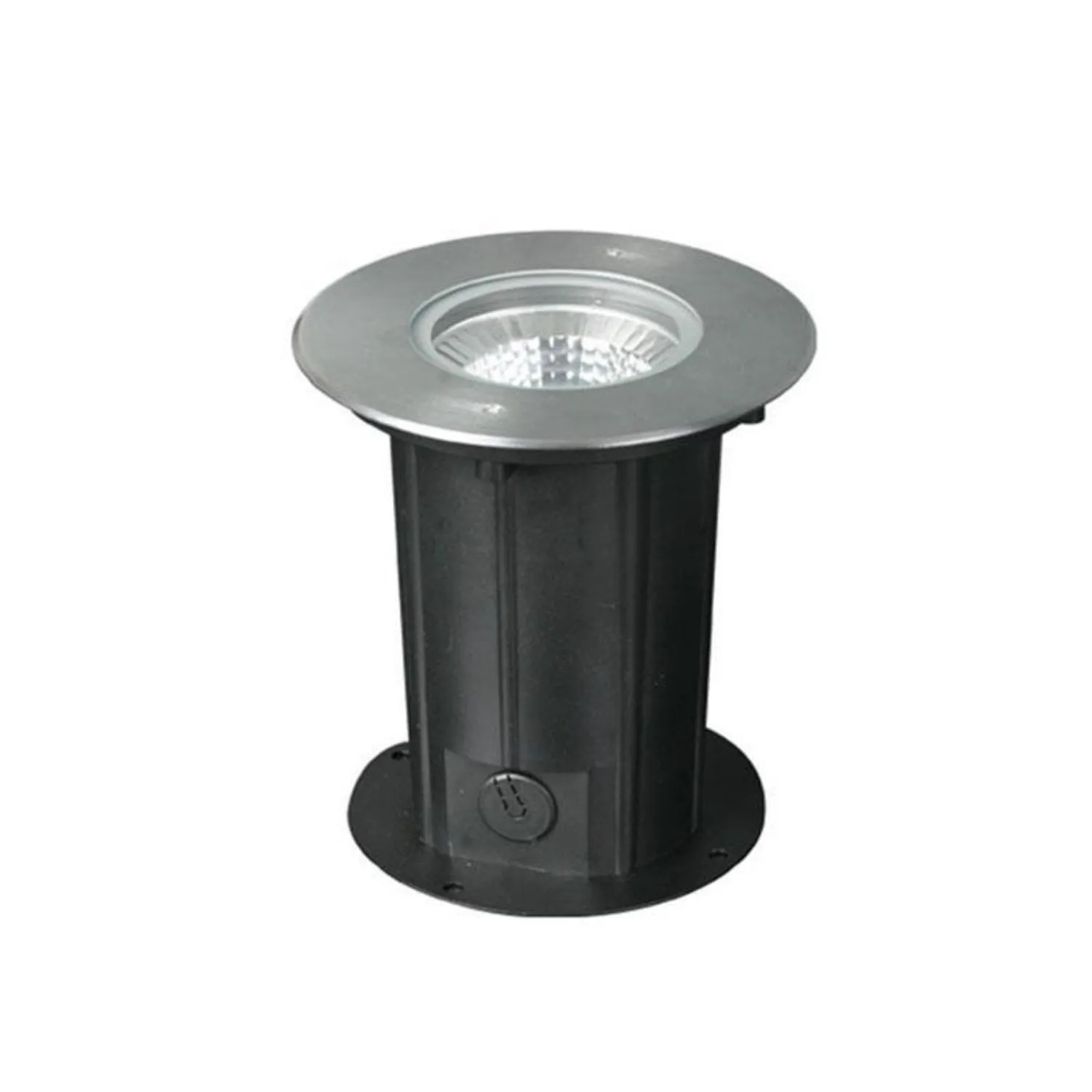

LED INGROUND LIGHT
INCLUDES
• S9344 LED inground light
• IP68 PG11 PVC cable gland
• Stainless steel allen screws
• Installation PVC canister
FEATURES
• Die-cast aluminium body
• 316L stainless steel face cover
• Tempered glass diffuser
• High efficiency COB LED chip
• High performance multi-reflector system
• Constant current LED driver fitted
• Moulding shaped silicone gasket
• IP67 weatherproof
• IK Rating: IK10
• Glass pressure capacity: 4900KGS
INSTALLATION TYPE
IN-GROUND
TECHNICAL SPECIFICATION
| MODEL NO |
COLOUR TEMPERATURE |
INPUT VOLTAGE |
POWER | LUMINOUS FLUX |
BEAM ANGLE |
CRI(RA) | DIMENSIONS Ø X H |
CUT OUT SIZE Ø |
FITTING COLOUR |
|---|---|---|---|---|---|---|---|---|---|
| S9344WW | 3000K | 240V~50Hz | 20W | 1200lm | 24º | >80 | 210 x 220 mm | 210 mm | Stainless Steel |
| S9344CW | 4000K | 240V~50Hz | 20W | 1200lm | 24º | >80 | 210 x 220 mm | 210 mm | Stainless Steel |
