• Galia: RMS 120W  /  MAX 240W
• Dažnių diapazonas: 45Hz - 22kHz
• Jautrumas: 93 dB
• Varža: 4 omai
• Garso ritės skersmuo: 40mm

VIDEO

APRAŠYMAS

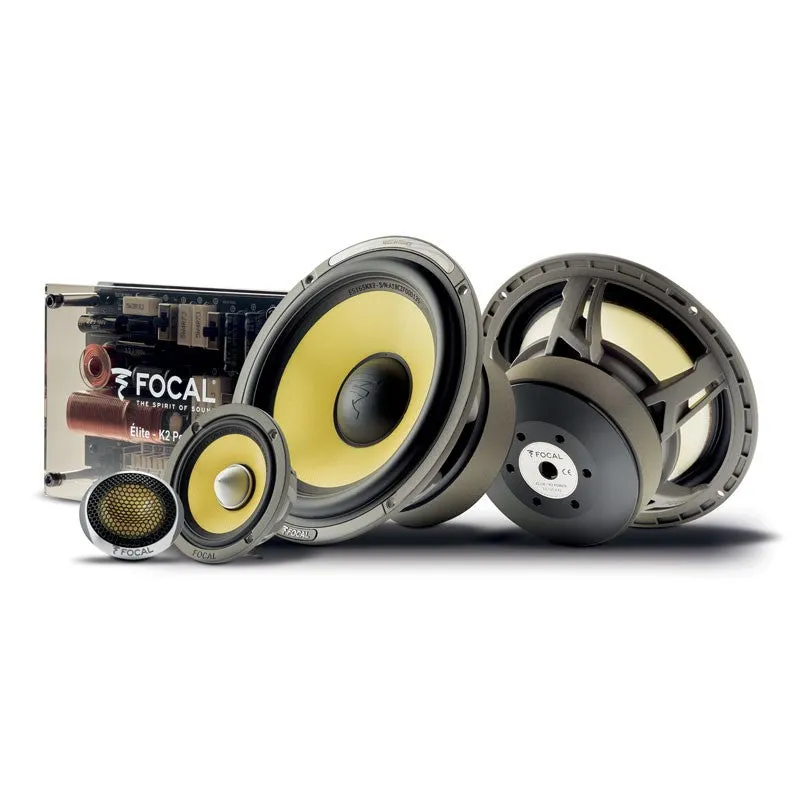

The ES 165 KX3 is a very complete kit offering remarkably extensive frequency response (45 Hz - 22 kHz). Its main advantages are the excellent power handling and the very realistic soundstage.

Composed of two 6½" (165 mm) woofers and two 3" (80 mm) mid-range speaker drivers with Kevlar® cones, it offers a very rich and dynamic mid-range and very low frequency response (45 Hz). The two bi-amped 'M'-shaped tweeters guarantee a precise high end with perfect definition.

This kit is composed with two 6,5” woofers and two 3” speakers.

The ES 165 KX3 is supplied with aluminum and mesh grilles.

SĄVYBĖS

• Inverted dome "M"-shaped tweeter
• Bi-Amp crossover
• High power handling
• 3" compact medium size
• Aluminum and mesh grille
• Safe impedance

TECHNINIAI DUOMENYS

• 3-way component kit
• Diameter: 6½" (165mm)
• Voice coil diameter: 19/16"(40mm)
• Voice coil height: 02/3"(16.5mm)
• Motor: Magnet
• Tweeter: TKMX ("M" profile aramid fiber
• inverted dome)
• Cone: Composite K2 Power "W" sandwich cone
• Surround: Tuned Mass Damper (TMD®)
• Separated crossover: 6-12/12/12dB
• (3/4/500Hz/3.5kHz)
• Tweeter Adjustable level: 3; 0; -3dB/oct
• Max.power: 240W
• Nom.power: 120W RMS
• Sensitivity (2.83V/1m): 93dB
• Frequency response: 45Hz- 22kHz
• Impedance: 4 Ω
• Accessories: Supplied grilles and midbox
