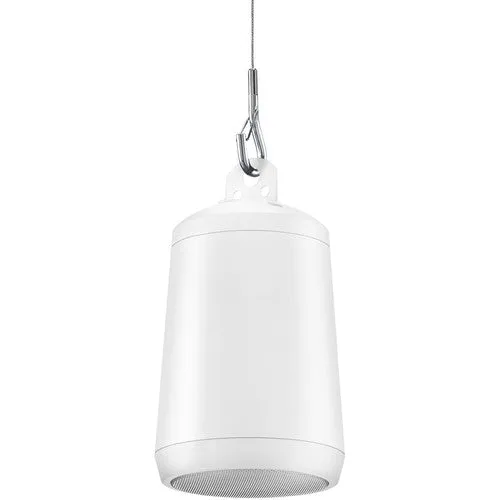

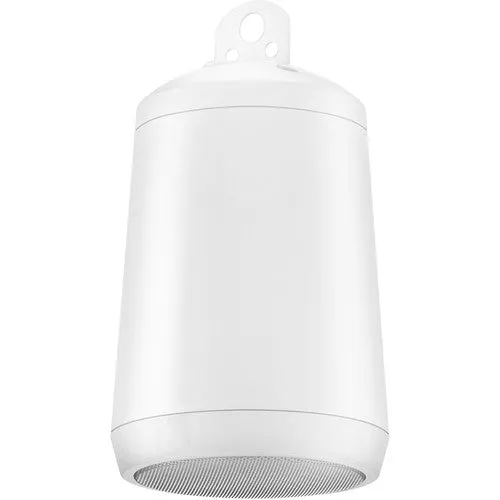

The EVID Compact Sound speaker series continues the EVID family’s focus on form and function, with stylish, architecture-friendly design, a best-in-class performance-to-size ratio, and user-friendly installation and operation. The system is designed to provide exceptional background/foreground audio performance in retail spaces, restaurants, and similar environments – all while being heard but hardly seen.

• Quick-install design with captive mounting tabs to fit nearly any ceiling construction.
• Four-pin Phoenix connectors on ceiling satellite speakers support pass-thru wiring.
• UL 2043/1480 ratings allow for use in signaling applications and plenum air spaces.
• Ceiling cutout templates and all mounting accessories included.
• Available in white finish.

Specifications:

• Frequency Range (-10 dB) 180 Hz – 20 kHzkHz
• Weight Net 25.75oz (730g)
• Width 113mm (4.45")
• Height 201mm (7.91")
• Available Color White
• Connector Type Phoenix (4-pin)
• Coverage (Nominal -6 dB) 150 x 150 (Voice) 100 x 100 (Music Program)
• Enclosure Material ABS (fire rated)
• Impedance 16Ω
• Maximum SPL 100dB
• Passive Power Handling 30W peak
• Power Handling (Continuous / Peak) 30 WW
• Power Rating 30W
• Regulatory Approvals UL1480
• Sensitivity 1 W/1 m 84dB
• Shipping Weight 2.04kg (4.5 lbs) (per pair)
• Weatherized Yes
