Name: CLA-2x5 - Compact 2x5 Line Array Speaker with Titanium Compression Driver
SKU: 1417383

Product Details ＋

Compact 2x5 Line Array Speaker with Titanium Compression Driver

MODEL:CLA-2x5
CONTENTS:One Compact Passive 2x5 Line Array Speaker
CONDITION: New
APPLICATION: Line Array Sound Reinforcement
ACTIVE/PASSIVE: Passive
WOOFER: Two 5" Loudspeakers
WOOFER SPECS: 30 oz Magnet and 1.5" Voice Coil
TWEETER/HORN: 1 3/8" Titanium Compression Driver with Wide Dispersion Horn
COVERAGE PATTERN: 55‚º x 25‚º
POWER: 150 Watts RMS; 300 Watts Peak
FREQUENCY RESPONSE: 65Hz - 20kHz
SENSITIVITY: 97 dB
CROSSOVER FREQUENCY: 3kHz
MAXIMUM SPL: 125 dB

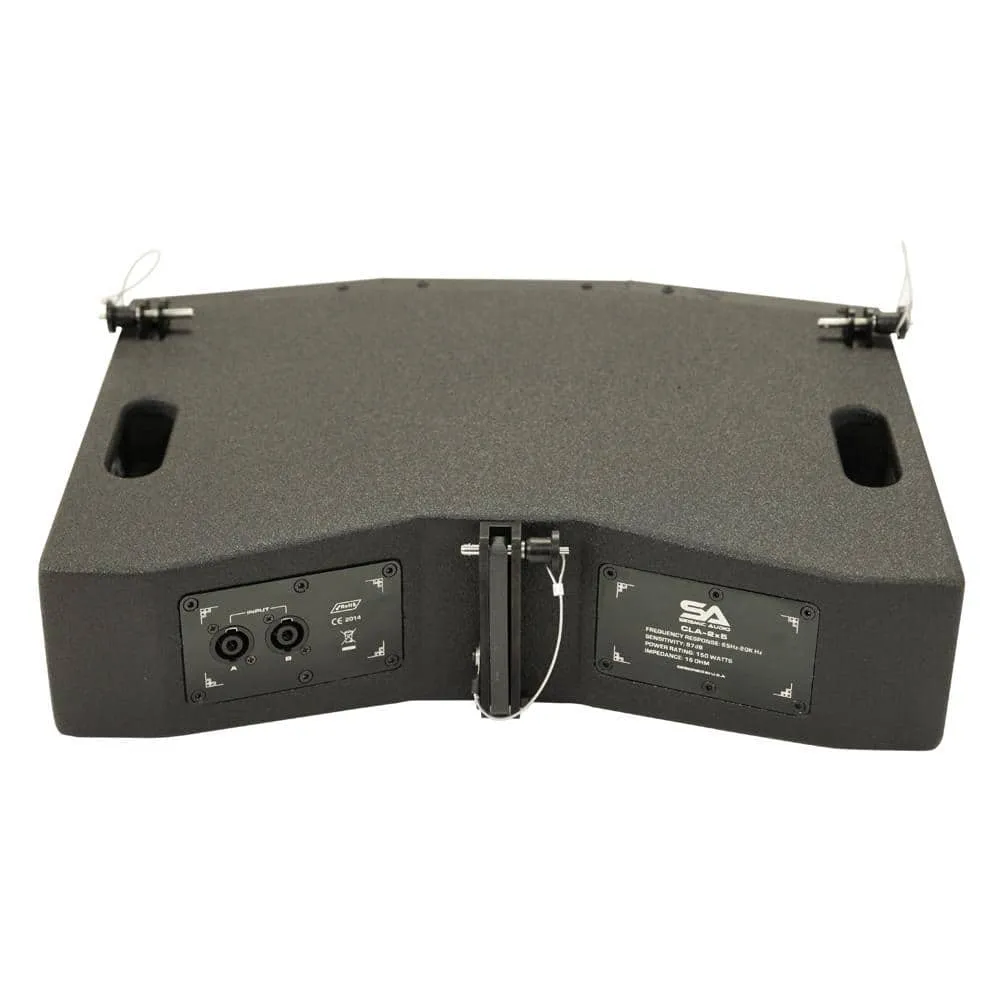

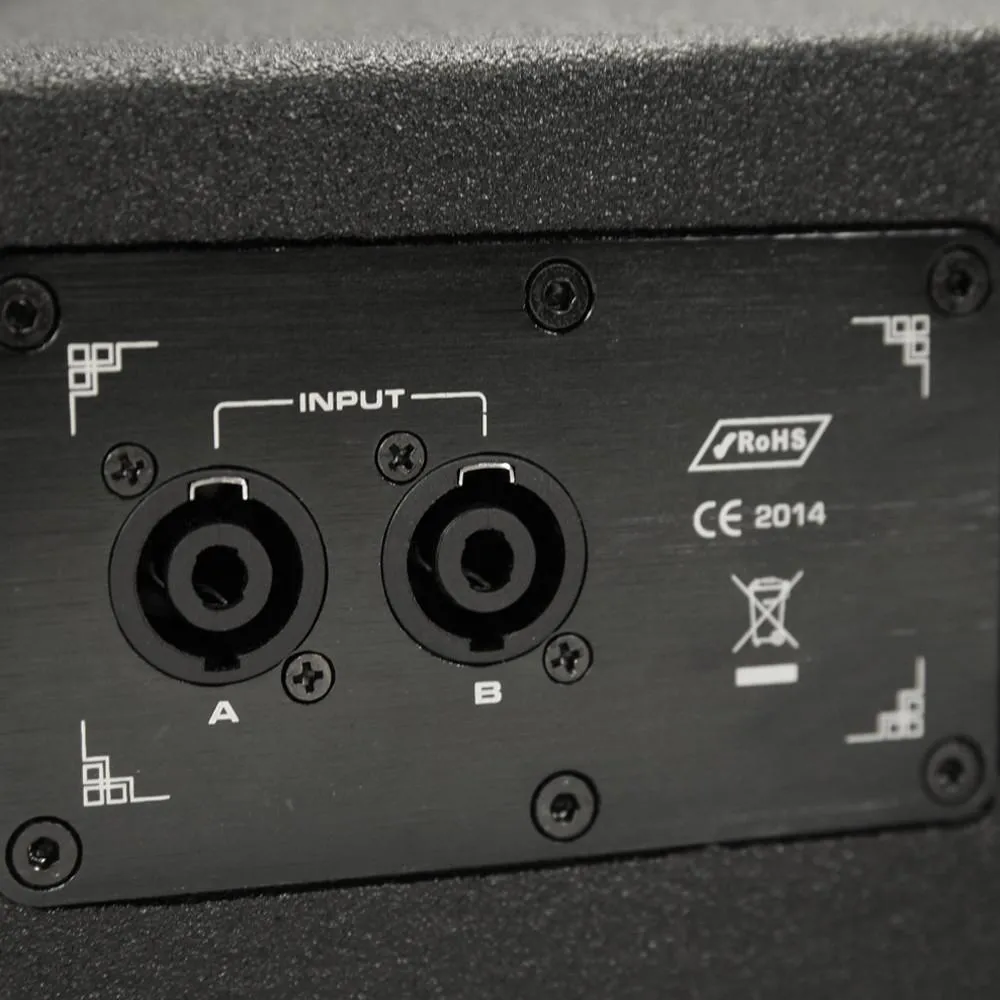

CONNECTORS:Two Speakon Connector Inputs
NOMINAL IMPEDANCE: 16 Ohms
GRILL: Full Metal Grill
HANDLES: Yes, Side Pocket Handle
ENCLOSURE: All Birch Plywood
POLE MOUNT: Line Array Frame Mountable
HEIGHT: 7.50"
WIDTH: 18.75"
DEPTH:12.50"
WEIGHT: 22 lbs per Cabinet
SUSPENSION / MOUNTING: High Intensity Aluminum Suspension Parts
SUSPENSION ANGLE: 0, 3, 6, 12, and 15 degrees
WARRANTY: One Year Warranty

The CLA Series of Line Array Speakers are a compact Line Array and are ideal for small to mid-size venues. The CLA-2x5 Compact Line Array Speaker from Seismic Audio features two 5" woofers and a heavy duty 1 3/8" titanium compression driver. These operate at 150 watts program and have a peak output of 300 Watts each. These Line Array Speakers are wired at 16 Ohms and have a frequency response of 65HZ - 20kHz. The CLA-2x5 Line Arrays are constructed of all birch plywood and still maintain an ultra compact and light design. The CLA-2x5 are designed to be used in a variety of ways including front of house and side fill in most small to medium venues.
