Product Details
＋
Features Include

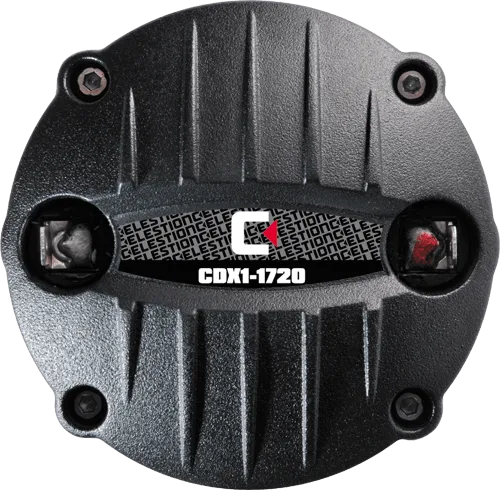

- 1" exit, lightweight and compact compression driver featuring a neodymium magnet and 1.75" titanium diaphragm
- 50Wrms (AES standard) power handling and 107dB sensitivity
- Roller polyimide surround improves stiffness control, further lowering distortion
- Lower resonance enabling lower crossover frequency
- Patented phase plug design method suppress cavity resonances at frequencies higher than that of conventional designs
- Lower compression ratio reduces air non-linearity and allows for higher maximum SPL
- Curved coherent wavefront, optimized for horn loading
General Specifications
Power rating: 50Wrms
Continuous power rating: 100W
Nominal impedance: 8Ω
Sensitivity: 107dB
Frequency range: 800-20,000Hz
Recommended min. crossover (12dB/oct): 1500Hz
Voice coil diameter: 44mm/1.75in
Voice coil material: Edgewound copper clad aluminium
Magnet type: Neodymium
Diaphragm material: Titanium
Surround material: Polyimide
Mounting Information
Maximum width: 88.5mm/3.48in
Minimum width: 82.0mm/3.23in
Depth: 55mm/2.2in
Weight: 0.65kg/1.4lb
Fitting: Flange (4 x M6 holes on 76mm/3in PCD)
Throat exit: 25.4mm/1in
Compatible Horns
H1-9040P, H1-7050 ‘No Bell’
