Product Details
＋

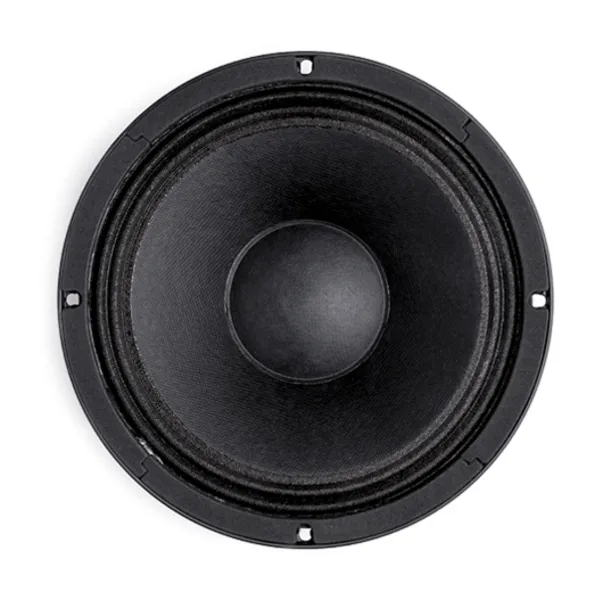

10" high efficiency Neodymium woofer.
Alternative Part Code: ALT010HPL648M
Specifications |
|
| Nominal Diameter: | 10", 254mm |
| Nominal Impedance: | 8 ohms |
| Nominal Power: | 200w rms, 400w program |
| Freq. Response: | 60 Hz-4.0 kHz |
| Sensitivity: | 98.5 db 1w/1m |
| Voice Coil Diameter: | 2.5", 64mm |
Mounting And Shipping Info |
|
| Overall Diameter: | 10.3", 261mm |
| Baffle Hole Diameter: | 8.8", 230mm |
| Mounting Hole BCD: | 9.6", 245mm |
| Depth: | 4.80", 122mm |
T/S Parameters |
|
| Fs: | 61.0 Hz |
| Re: | 5.4 ohms |
| Le: | 0.5mH |
| Qms: | 4.5 |
| Qes: | 0.33 |
| Qts: | 0.31 |
| Vas: | 32 L, 1.1 cuft |
| Xmax: | 4mm |
Construction |
|
| Cast basket | |
| Neodymium magnet with aluminum voice coil | |
| Recone Kit: RCK010HPL648 | |
